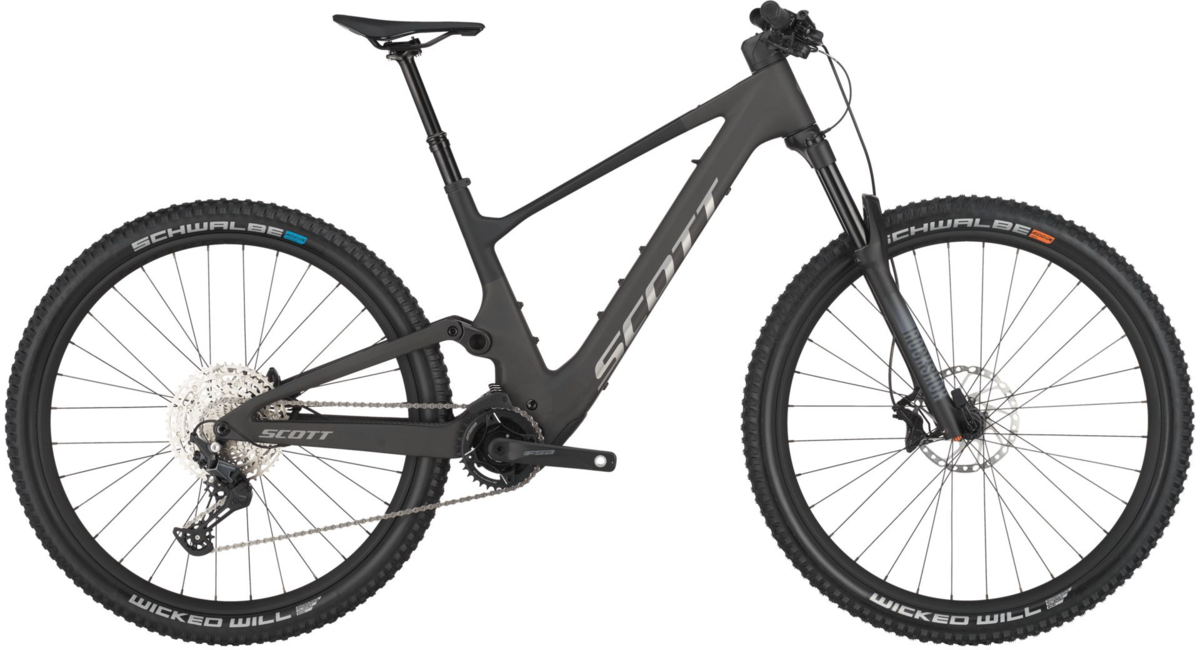

Scott Lumen 920
$5,999.99
Details
An eMTB with the weight of an MTB, starting at 15.5kg! Take the best Cross-Country/Trail platform to date, the Spark 900, top it off with 130mm of travel paired with a 140mm fork, add silent and powerful electric assistance, yet keep its legendary lightweight DNA, and you are ready to ride any trail at Nino’s speed.
Key Features:
- RockShox Recon Gold RL 140mm Fork
- X-Fusion Nude, TwinLoc, 130mm
- Shimano Deore 12 Speed
- Shimano 4 Piston Disc Brakes
- Syncros X-30S TR Rims
- Schwalbe Wicked Will Tires
- Syncros Dropper Post and Parts
- Max. System Weight - 128kg, The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
| Frame Size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| head tube angle | 65.5° | 65.5° | 65.5° | 65.5° |
| head tube length | 110.0 mm | 110.0 mm | 120.0 mm | 135.0 mm |
| top tube horizontal | 562.0 mm | 589.0 mm | 620.0 mm | 645.0 mm |
| standover height | 765.0 mm | 767.0 mm | 780.0 mm | 800.0 mm |
| BB offset | -38.5 mm | -38.5 mm | -38.5 mm | -38.5 mm |
| BB height | 338.5 mm | 338.5 mm | 338.5 mm | 338.5 mm |
| wheel base | 1,176.0 mm | 1,206.0 mm | 1,240.0 mm | 1,270.0 mm |
| BB center to top of seattube | 415.0 mm | 440.0 mm | 480.0 mm | 520.0 mm |
| seat angle | 76.8° | 77.0° | 77.2° | 77.5° |
| chainstay | 450.0 mm | 450.0 mm | 450.0 mm | 450.0 mm |
| reach | 416.0 mm | 446.0 mm | 476.0 mm | 501.0 mm |
| stack | 615.0 mm | 615.0 mm | 625.0 mm | 638.0 mm |
| stem length | 50.0 mm | 60.0 mm | 70.0 mm | 70.0 mm |
| trail | 126.0 mm | 126.0 mm | 126.0 mm | 126.0 mm |
| Fork length | 540.0 mm | 540.0 mm | 540.0 mm | 540.0 mm |
| Maximum Seatpost Insertion | 150.0 mm | 175.0 mm | 215.0 mm | 255.0 mm |
| Crank Length | 170.0 mm | 170.0 mm | 175.0 mm | 175.0 mm |
| Body Height (CM) | Body Height (IN) | Lumen eRIDE Frame Size | Contessa Lumen eRIDE Frame Size |
|---|---|---|---|
| < 165 cm | < 65 in | S | XXS / 27.5" |
| 165 - 175 cm | 65 - 69 in | S | M |
| 175 - 185 cm | 69 - 73 in | L | L |
| 185 - 195 cm | 73 - 77 in | XL | XL |
| > 195 cm | > 77 in | XL | - |
Specs
| Frame | Carbon HMF Main Frame / Alloy SST-CST Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline |
|---|---|
| Fork | RockShox Recon Gold RL Solo Air 2-Modes / 15x110mm axle / tapered steerer 42mm offset / Reb. Adj. / Lockout / 140mm travel |
| Rear Shock | X-Fusion NUDE 5 RLX Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Reb. Adj. Travel 130-90-Lockout / T165X45mm |
| Rims | Syncros X-30S / 32H / 30mm Tubeless ready |
| Hubs |
Front: Formula CL-811 / 15x110mm Rear: Formula CL-148S / 12x148mm |
| Tires | Schwalbe Wicked Will 29x2.4" EVO Super Race / TLE / 67EPI / Addix Speed Soft |
| Crankset | FSA Alloy |
| Chainrings | SCOTT custom spider / FSA 12Speed 34T chainring |
| Shifters | Shimano Deore SL-M6100-IR / Rapidfire Plus |
| Rear Derailleur | Shimano Deore RD-M6100 SGS Shadow Plus / 12 Speed |
| Cassette/Freewheel | Shimano CS-M6100 / 10-51 |
| Chain | Shimano CN-M6100 |
| Brakes | Shimano MT520 4 Piston Disc |
| Rotors | Front: SM-RT64 CL 180mm / Rear: RT-EM600 CL 180mm |
| Handlebars | Syncros Fraser 2.0 DC Alloy 6061 D.B. mini Rise / back sweep 8° / 760mm |
| Tape/Grips | Syncros Performance XC lock-on grips |
| Stem | Syncros DC 2.0 Syncros Cable Integration System 0° rise / 6061 Alloy / 31.8mm / 1 1/8" |
| Headset | Syncros - Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB |
| Seatpost | Syncros Duncan Dropper Post 2.0 31.6mm / S & M size 125mm / L size 150mm / XL size 170mm |
| Saddle | Syncros Tofino 2.0 Regular CRMO rails |
| Pedals | Sold Separately |
| Motor | TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph |
| Battery | TQ Internal 360Wh |
| Controller/Display | TQ HPR Bluetooth / ANT+ / Dedicated Smartphone app |
| Charger | TQ 100-240V-4A |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Carbon Black / Medium / 29-inch | 07616185285144 | 4234243020008 | 210000007469 |
| Carbon Black / Large / 29-inch | 07616185285151 | 4234243020010 | 210000007463 |
